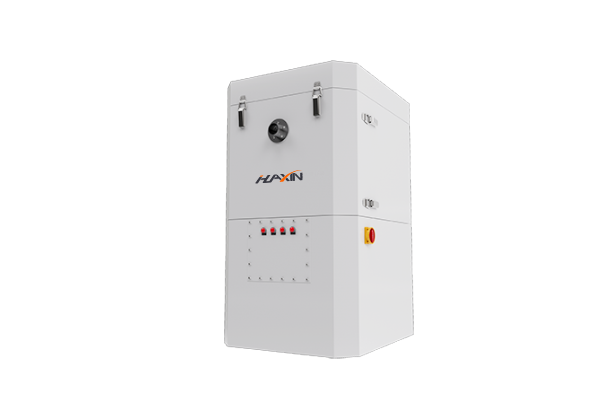

| Product Model | HXHJ-GL150 | HXHJ-GL330 | ||
| Maximum negative pressure | 28000Pa | 27000Pa | ||
| Handling air volume | 150m³/h | 330m³/h | ||
| Fan power | 1.6KW | 3.0KW | ||
| Fan brand | Jinan Huaxin | |||
| Rated operating voltage (three-phase) | 380V | |||
| Rated operating frequency | 50Hz | |||
| Filtration area | 7㎡ | |||
| Number of filter cartridges | 2 | |||
| Filter cartridge installation method | Vertical installation | |||
| Filter cartridge specifications | Φ245*L350mm | |||
| Filter cartridge material | Polyester fiber +PTFE film | |||
| Filter cartridge brand | Jinan Huaxin | |||
| Filtration efficiency | 99.99% | |||
| Filtration accuracy | 0.3μm | |||

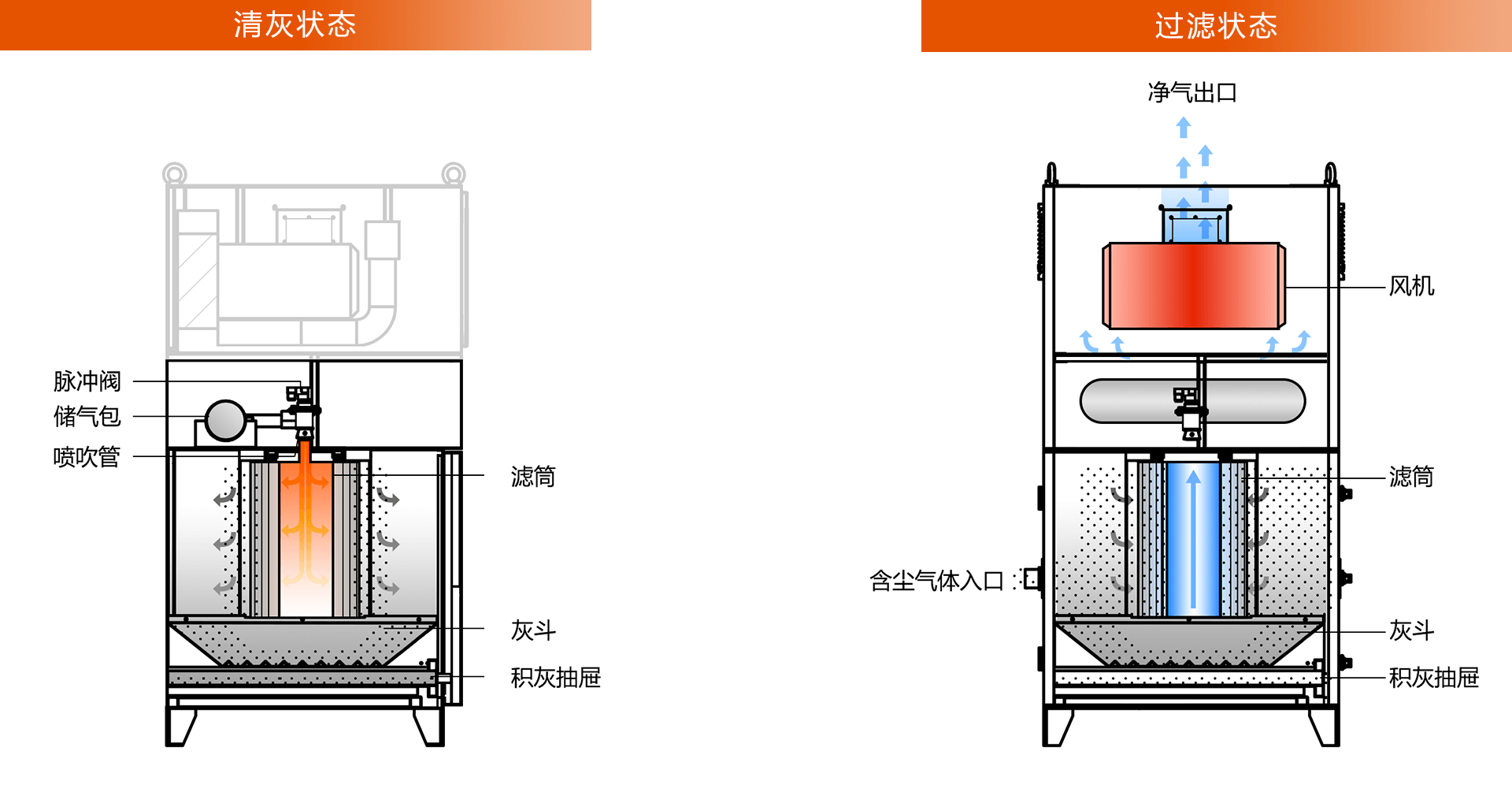

| Cleaning method | Pulse cleaning | |||
| Air bag material | 304 stainless steel | |||
| Compressed air | 0.4-0.6Mpa | |||
| Dust collection device | Special dust drawer | |||
| Working noise | 72±3dB(A) | 72±3dB(A) | ||
| Equipment dimensions (length*width*height) |
0.6*0.66*1.2（m） | 0.62*0.66*1.2（m） | ||
