Welding smoke exhaust for dust collectors

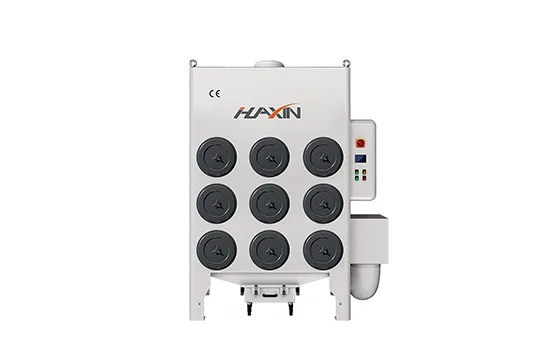

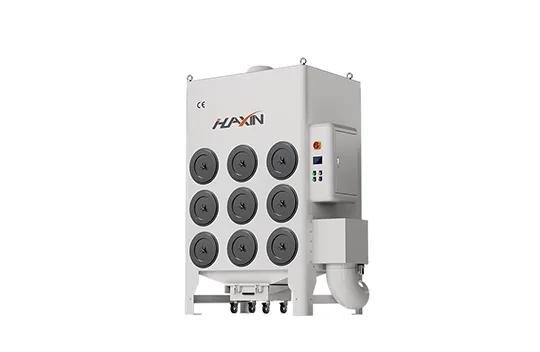

The HXHJ-JG Series is specially developed for industrial dust collectors and centralized dust removal systems in modern workshops. Designed with advanced control panels and human-machine interfaces (HMI), the JG Series offers intelligent flexibility, stable operation, energy efficiency, and strong scalability to meet diverse industrial dust management needs. Key Features Intelligent Control Panel & HMI – Simple, intuitive operation with real-time monitoring Stable & Energy-Saving Operation – Optimized for reduced energy consumption and consistent performance Scalable & Flexible – Easily integrates with centralized dust collection systems or single-unit setups Enhanced Cleaning Efficiency – Ensures thorough ash and dust removal for longer filter life User-Friendly Design – Minimizes maintenance requirements and simplifies system operation Remote Monitoring & Control – Enables smart supervision, troubleshooting, and predictive maintenance Advantages ✔ Extended Service Life – Durable components reduce wear and downtime ✔ Intelligent Dust Removal – Smart control for workshop-wide air purification ✔ Energy Efficiency – Lower operational costs through automated management ✔ Certified Quality – EU CE Certified, ISO9001 International Quality Certification, and China CEP Environmental Certification Applications Centralized industrial dust collectors Welding, cutting, grinding, and polishing workshops requiring workshop-wide dust control Steel structure, automotive, shipbuilding, and machinery manufacturing industries Facilities needing intelligent and automated dust removal systems Intelligent Control Panel & HMI – Simple operation with real-time monitoring Stable & Energy-Saving Operation – Ensures consistent performance with reduced energy consumption Scalability & Compatibility – Easily integrates into centralized dust collection systems Enhanced Cleaning Efficiency – Provides more thorough ash cleaning for extended filter life User-Friendly Design – Intuitive operation and reduced maintenance needs Advantages ✔ Extended Service Life – Optimized system design reduces wear and downtime ✔ Intelligent Dust Removal Management – Suitable for workshop-wide dust purification ✔ Energy Efficiency – Lower operating costs with smarter control ✔ Certified by EU CE Certification, ISO9001 International Quality Certification, and China CEP Environmental Certification Applications Centralized industrial dust collectors Welding, cutting, and grinding workshops requiring workshop-wide dust control Steel structure, automotive, shipbuilding, and machinery manufacturing industries Facilities requiring intelligent and automated dust removal systems
Send Inquiry
| Air volume | 4000-15000m³/h |
| power | 5.5-15KW |
| Cleaning method | Rotary pulse cleaning/Venturi pulse cleaning |
| Dust removal efficiency | 99.99% |
| Fan brand | Jinan Huaxin |
| breaker | S Schneider |
| PLC control system touch screen | Siemens |
| Product Model | JG04 | JG06 | JG09 | JG12 |
| Handling air volume | 4000-6000m³/h | 6000-8000m³/h | 9000-11000m³/h | 12000-14000m³/h |
| Fan power | 5.5KW | 7.5KW | 11KW | 15KW |
| Fan brand | Jinan Huaxin | |||
| Rated operating voltage (three-phase) | 220/230/380/400V | |||
| Rated operating frequency | 50Hz;60Hz | |||
| noise | 77±3dB(A) | |||
| Silencers | Overhead mute box | |||
| Filtration area | 52m² | 78m² | 117m² | 156m² |
| Number of filter cartridges | 4 | 6 | 9 | 12 |
| Filtration area of single filter cartridge | 13m² | |||
| Filter cartridge specifications | Φ350*L660mm | |||
| Filter material | Polyester fiber + PTFE coating | |||
| Filter cartridge brand | Jinan Huaxin | |||
| Cleaning method | Automatic pulse cleaning | |||
| Air bag material | 304 stainless steel | |||
| Compressed air | 0.4-0.6MPa | |||
| Filtration efficiency | 99.90% | |||
| Filter particles | 0.3μm | |||
| Air inlet size | ≥Φ250mm | ≥Φ300mm | ≥Φ350mm | ≥Φ400mm |
| Ambient temperature | -10℃ to 40℃ | |||
| Flue gas temperature | ≤80 | |||
| Dust collection | Special dust collection trolley | |||
| Electronic control method | Fixed frequency/variable frequency | |||
| Main component brands | Chint | |||
| Equipment dimensions (length*width*height) | 1.3x0.94x2.2 (m) | 1.8x1.05x2.2 (m) | 1.8x1.1x2.82 (m) | 1.8x1.2x3.3 (m) |
JG adopts horizontally mounted quick-release filter element, which is convenient for removal and maintenance.
A-type centrifugal fan, powerful power, energy saving and high efficiency
The cleaning method is Venturi type cleaning.
The intelligent control system enables remote operation and maintenance, equipment interconnection, and timely and efficient after-sales service, giving customers greater peace of mind. The electrical control box can be installed either internally or externally.
The power core A-type centrifugal fan is built-in design, and the fan blades and wheel cover are molded and molded. it has the advantages of energy saving, high efficiency, low noise, and stable performance.
The vertically mounted quick-loading filter element is used to facilitate the dis assembly and maintenance of the filter element. The filter element uses im ported high-efficiency flame-retardant film-coated filter material. with a filtra tion accuracy of up to 99.99%, and the filtered clean gas can be effectively cir- culated.

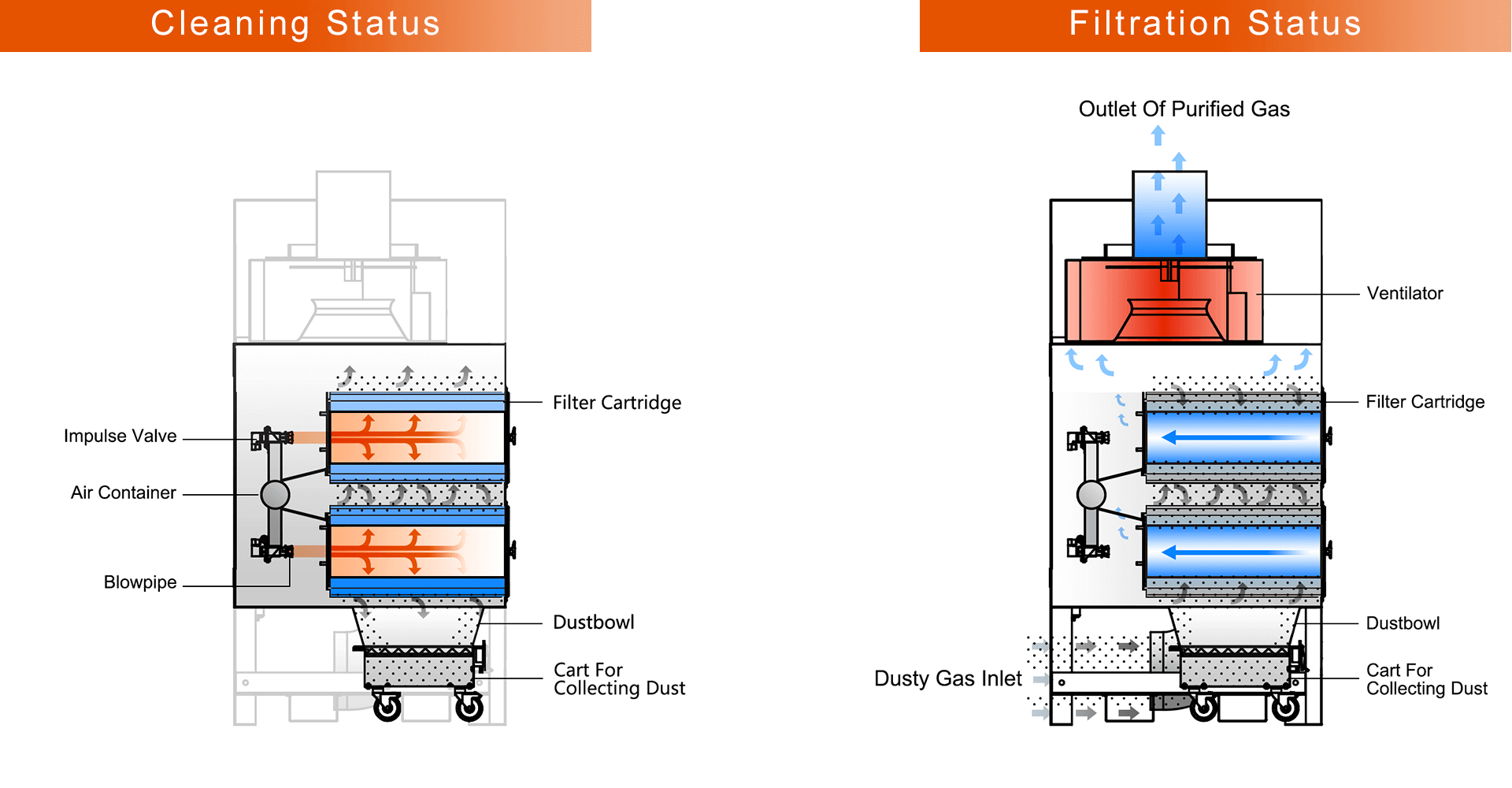

Through repeated impact vibrations with small amplitude, the dust accumulat- ed on the outside of the filter cartridge is shaken into the ash hopper.
The ash hopper is equipped with a multi-shaped anti-ash return device and an ash level meter to provide real-time feedback on the amount of dust accumu lated in the ash hopper, prompting dust cleaning, and extending the service life of the equipment.
Easy to operate,simple dust cleaning method, large capacity
Jinan Huaxin Automation Engineering Co., Ltd. is the only national high-tech enterprise in China dedicated to providing overall solutions for the entire industrial chain of process gas systems and waste gas treatment systems. It is a professional manufacturer in the field of industrial environmental protection and dust removal.
Meet national health and safety production standards, with a particle concentration of less than 4 milligrams in the production environment
The filter element has a service life of about 5000 hours, and the replacement cycle is 6-12 months depending on the working conditions.
Adjust the appropriate pulse frequency according to production conditions, regularly clean the dust in the ash hopper, and have trained personnel operate the equipment
ISO,CE, SGS
Jinan Huaxin's products are exported to more than 100 countries and regions around the world, mainly including the United States, Canada, Mexico, Germany, France, the Netherlands, Italy, Spain, Portugal, Hungary, Romania, Russia, Ukraine, Australia, New Zealand, Argentina, Chile, Thailand, Vietnam, the Philippines, etc
The nano filter has a large filtration area and flame retardant effect, and the filter cartridge material will not burn when the open flame is extinguished
End user; Shanghai Zhenhua, COSCO Shipping, China Merchants Heavy Industry, Sany Heavy Industry, Lingong, XCMG, Liugong, Longgong, Beijing Coal Machinery, Zhengzhou Coal Machinery, Hancheng Coal Machinery, Pingdingshan Coal Machinery, China National Heavy Duty Truck Group, Shaanxi Automobile Group, Dongfeng Motor, BYD, Geely Automobile, Chery Automobile and more than 3000 end users, laser matching; Over 50 laser manufacturers, including Bodor Laser, HSG Laser, Jinweike Laser, Red Bull Laser, Longdiao Laser, Xintian Laser, Jinqiang Laser, etc., provide year-round export support for robot welding integration; More than 50 robot workstations, including Kunshan Huaheng, Xiamen Sirte, Tangshan Kaiyuan, Shanghai Hailike, Nanjing Estun, Nanjing Aote, Nanjing Hexin, Shandong Maihe, etc., are equipped with dust removal systems throughout the year
High operational stability under the same working conditions, high usage rate in the same industry, energy-saving and consumption reducing, low noise, small space occupation, exquisite appearance,
The size of the workpiece, working hours, specifications and dosage of the welding wire,
The filter cartridge has a service life and belongs to consumables
Purification of smoke and dust generated during welding and cutting conditions, collection and treatment of dust generated during polishing and laser rust removal, and treatment of exhaust gas odors in painting workshops,
Can meet the customized needs of customers
Welding workshop, Laser cutting plant, Cutting workshop, Grinding workshop, Polishing workshop, Automotive factory, Shipbuilding workshop, Steel structure factory, Heavy machinery workshop, Production line dust control, Workshop-wide air purification, Industrial manufacturing facility, Large-scale workshop, Centralized dust management, Blowing and suction smoke control.
