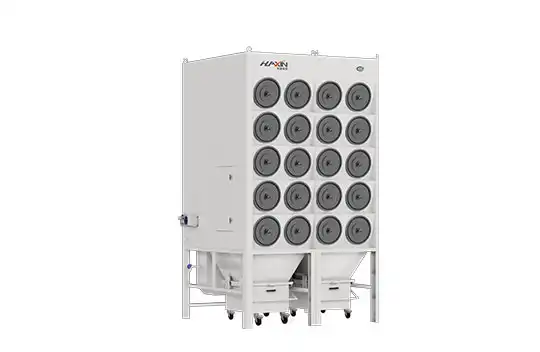

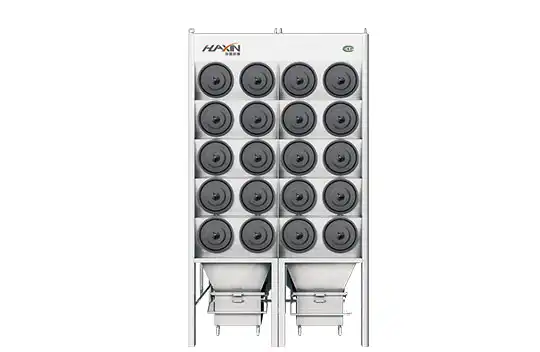

Welding smoke exhaust for dust collectors
Our purification equipment focuses on efficiency and even more on environmental protection, helping users meet production needs while effectively reducing environmental pollution and ensuring a healthy and safe working environment. Through our XC centralized smoke and dust purification equipment, users can easily achieve centralized and efficient smoke and dust treatment, enhancing the overall production management level.
Send Inquiry
| Air volume | 4000-15000m³/h |
| power | 5.5-15KW |
| Cleaning method | Rotary pulse cleaning/Venturi pulse cleaning |
| Dust removal efficiency | 99.99% |
| Fan brand | Jinan Huaxin |
| breaker | S Schneider |
| PLC control system touch screen | Siemens |
| model | HXHJ-XC08 | HXHJ-XC10 | HXHJ-XC16 | HXHJ-XC20 | HXHJ-XC24 | HXHJ-XC32 | HXHJ-XC40 | HXHJ-XC48 |
| Number of filter cartridges |
8 | 10 | 16 | 20 | twenty four | 32 | 40 | 48 |
| Filter cartridge model (mm) |
φ350*1000 | |||||||
| Filter material | Polyester fiber + PTFE coating | |||||||
| Filtration area of single filter cartridge (㎡) |
20 | |||||||
| Total filtration area (㎡) |
160 | 200 | 320 | 400 | 480 | 640 | 800 | 960 |
| Air volume (m³/H) |
11000-16500 | 13500-20000 | 22000-33000 | 27000-40000 | 33000-49500 | 44000-66000 | 54000-80000 | 66000-99000 |
| Minimum filtration air velocity of filter cartridge | 1.15 | |||||||
| Maximum filtration speed of filter cartridge | 1.73 | |||||||
The filter element adopts oblique insertion and quick-release filter element, which is easy to remove and maintain. The filter element adopts imported high-efficiency flame-retardant coated filter material with a filtration accuracy of up to 99.99%.

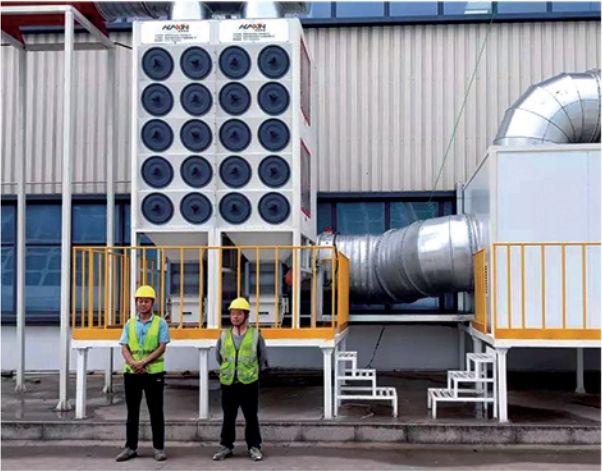

Modular design, compact structure, small footprint, easy to transport and install.
The intelligent control system enables remote operation and maintenance and equipment interconnection, and provides timely and efficient after-sales service, allowing customers to use it with greater peace of mind.
The dust collection method adopts the dust trolley. The dust cleaning of the dust trolley is based on ergonomics and is simple to operate. The trolley can be pulled and moved at any time. It has a large dust holding capacity and reduces labor costs.
The power core A-type centrifugal fan is built-in design, and the fan blades and wheel cover are molded and molded. it has the advantages of energy saving, high efficiency, low noise, and stable performance.
The vertically mounted quick-loading filter element is used to facilitate the dis assembly and maintenance of the filter element. The filter element uses im ported high-efficiency flame-retardant film-coated filter material. with a filtra tion accuracy of up to 99.99%, and the filtered clean gas can be effectively cir- culated.

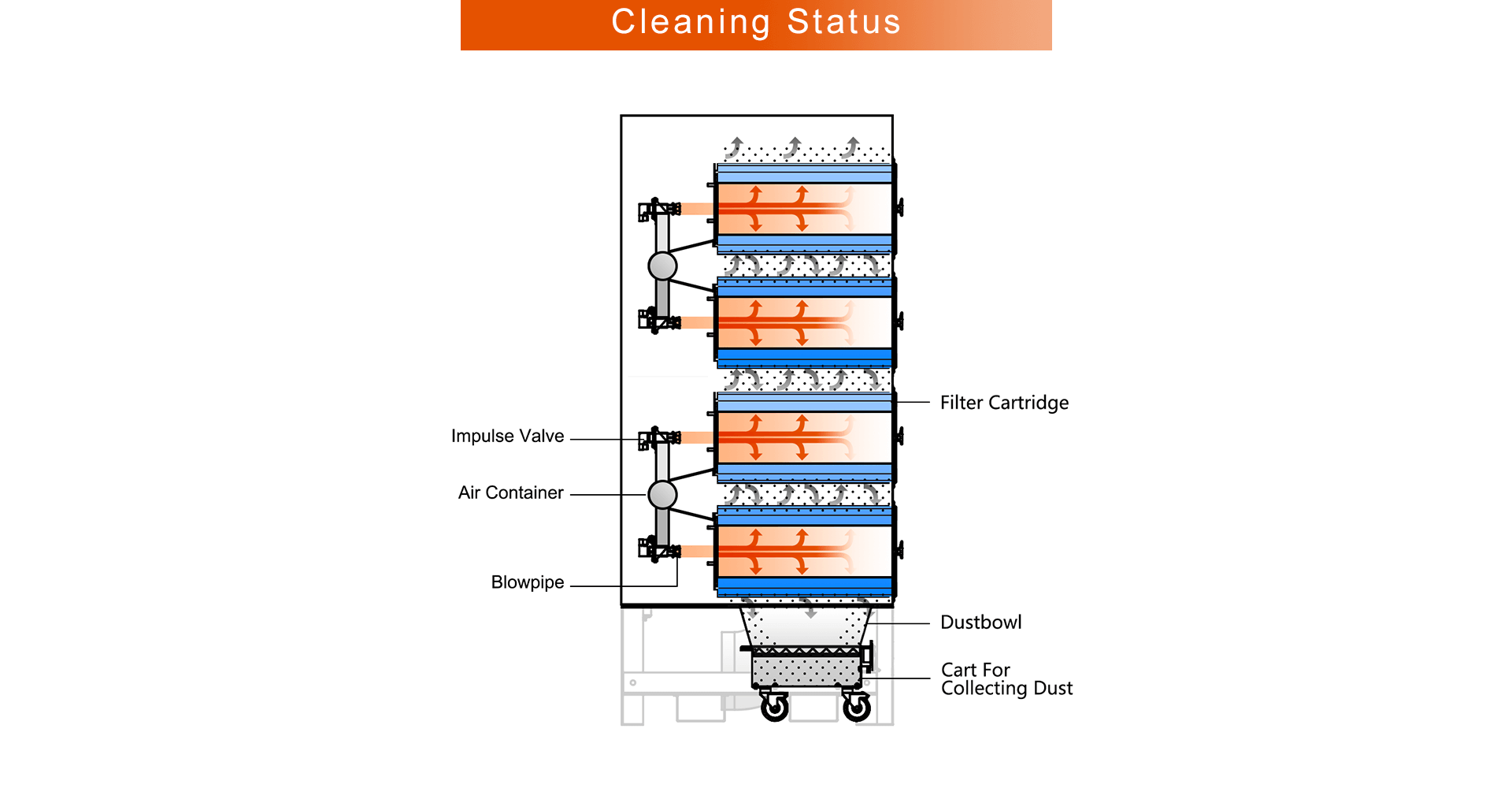

Through repeated impact vibrations with small amplitude, the dust accumulat- ed on the outside of the filter cartridge is shaken into the ash hopper.
The ash hopper is equipped with a multi-shaped anti-ash return device and an ash level meter to provide real-time feedback on the amount of dust accumu lated in the ash hopper, prompting dust cleaning, and extending the service life of the equipment.
Easy to operate,simple dust cleaning method, large capacity
Jinan Huaxin Automation Engineering Co., Ltd. is the only national high-tech enterprise in China dedicated to providing overall solutions for the entire industrial chain of process gas systems and waste gas treatment systems. It is a professional manufacturer in the field of industrial environmental protection and dust removal.
Meet national health and safety production standards, with a particle concentration of less than 4 milligrams in the production environment
The filter element has a service life of about 5000 hours, and the replacement cycle is 6-12 months depending on the working conditions.
Adjust the appropriate pulse frequency according to production conditions, regularly clean the dust in the ash hopper, and have trained personnel operate the equipment
ISO,CE, SGS
Jinan Huaxin's products are exported to more than 100 countries and regions around the world, mainly including the United States, Canada, Mexico, Germany, France, the Netherlands, Italy, Spain, Portugal, Hungary, Romania, Russia, Ukraine, Australia, New Zealand, Argentina, Chile, Thailand, Vietnam, the Philippines, etc
The nano filter has a large filtration area and flame retardant effect, and the filter cartridge material will not burn when the open flame is extinguished
End user; Shanghai Zhenhua, COSCO Shipping, China Merchants Heavy Industry, Sany Heavy Industry, Lingong, XCMG, Liugong, Longgong, Beijing Coal Machinery, Zhengzhou Coal Machinery, Hancheng Coal Machinery, Pingdingshan Coal Machinery, China National Heavy Duty Truck Group, Shaanxi Automobile Group, Dongfeng Motor, BYD, Geely Automobile, Chery Automobile and more than 3000 end users, laser matching; Over 50 laser manufacturers, including Bodor Laser, HSG Laser, Jinweike Laser, Red Bull Laser, Longdiao Laser, Xintian Laser, Jinqiang Laser, etc., provide year-round export support for robot welding integration; More than 50 robot workstations, including Kunshan Huaheng, Xiamen Sirte, Tangshan Kaiyuan, Shanghai Hailike, Nanjing Estun, Nanjing Aote, Nanjing Hexin, Shandong Maihe, etc., are equipped with dust removal systems throughout the year
High operational stability under the same working conditions, high usage rate in the same industry, energy-saving and consumption reducing, low noise, small space occupation, exquisite appearance,
The size of the workpiece, working hours, specifications and dosage of the welding wire,
The filter cartridge has a service life and belongs to consumables

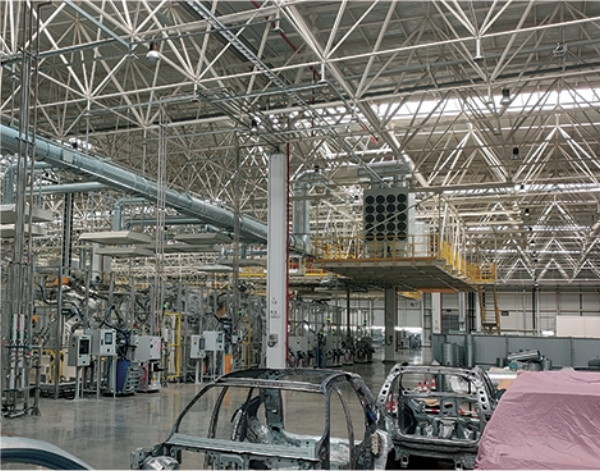

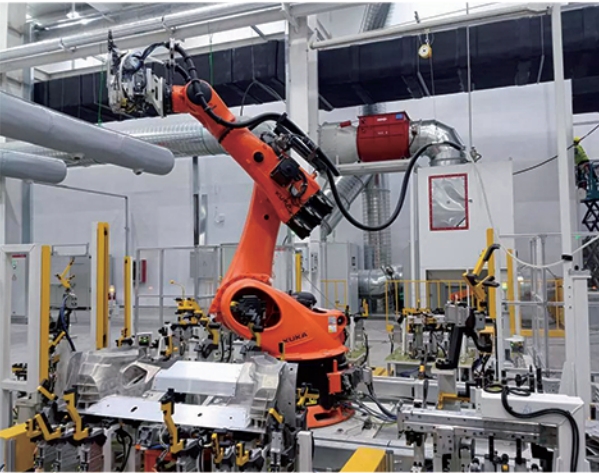

Purification of smoke and dust generated during welding and cutting conditions, collection and treatment of dust generated during polishing and laser rust removal, and treatment of exhaust gas odors in painting workshops,
Can meet the customized needs of customers
